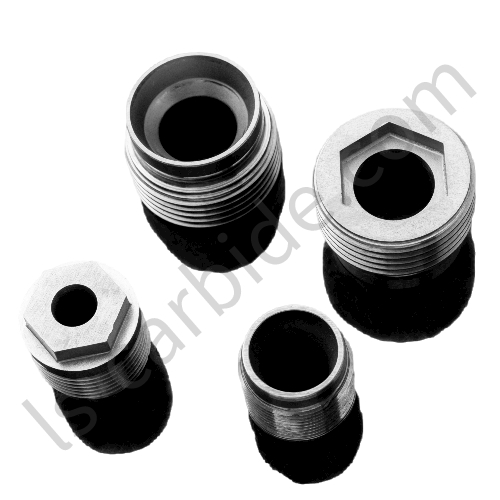

Tungsten Carbide nozzles are made by hot pushing sintering of hot straight holes and pile openings. Cemented carbide has a collection of outstanding performance such as high hardness, wear resistance, good strength and durability, heat resistance and corrosion resistance, specifically its high solidity and put on resistance, which primarily remain the same also at a temperature of 500 ° C, It still has high solidity at 1000 ° C.
Features of carbide nozzles:
1. Has extremely high hardness and strength
2. Excellent chemical stability, excellent corrosion resistance and temperature resistance
3. Longer service life, reducing the frequency of nozzle replacement
4. High precision and small tolerance
Our advantage:
1. Complete material grades to meet various needs
2. The production line is mature
3. The team has rich experience and strong ability
4. Strict quality inspection
5. Excellent material quality
6. Customized service, can be produced according to drawings
application:
Petroleum, chemical, surface treatment, electronics and other industries
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
