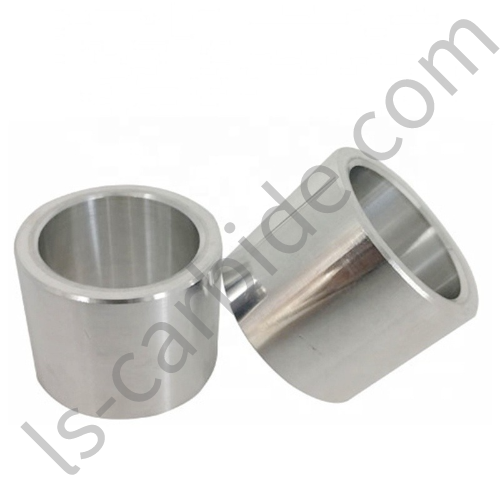

Langsun Carbide's tungsten carbide bearing bushings are well suited for a variety of high wear applications. They are manufactured from pure, high quality tungsten carbide raw material through several complex machining processes. They are extremely hard and wear resistant.
Tungsten carbide bushings are widely used in industry and manufacturing and have excellent corrosion and wear resistance.
Although tungsten carbide is more expensive than other materials, bushings made with tungsten carbide offer better performance and longer life, which means you spend less time replacing bushings and less downtime.
- Can be used for stretching and stamping.
- Can be used as an accessory to mechanical parts.
- Corrosion resistant material for sealing in valve applications.
- Can be used in bearing applications as a wear reducer to minimize wear between bearing seats.
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
