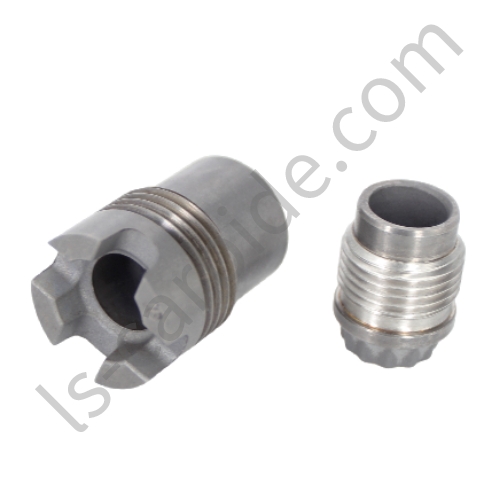

Applications of tungsten carbide nozzles:
Oil and gas, surface treatment, electronics, chemical industry and other industries
Features of tungsten carbide nozzles:
1. The temperature resistance can reach about 1200 degrees Celsius
2. Excellent wear resistance
3. The hardness can reach above HRC50
4. Low post-maintenance and repair costs
Our advantage:
1. 100% high-quality tungsten carbide raw material
2. All material grades
3. Advanced and precise processing facilities
4. Can be customized according to drawings
5. ISO9001 certification
6. Competitive price
Ningbo Langsun Tungsten Carbide Co., Ltd. has decades of experience in processing and manufacturing tungsten carbide parts. We have a mature factory and production line, and the internal quality inspection of the factory is also very strict. All products have passed the ISO international standard certification. The tungsten carbide bozzle nozzle we produce have excellent performance, are not easy to be damaged during use, and can be used in harsh working environments. If there is a problem with the tungsten carbide nozzle during the warranty period, we can also replace it unconditionally.
If you are interested in our tungsten carbide nozzles, please feel free to contact us.
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
