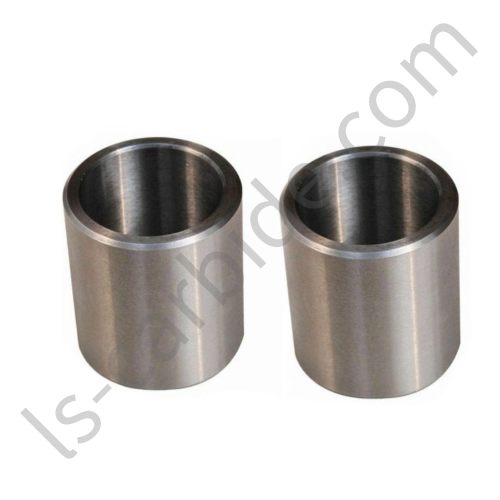

Tungsten carbide bushing is a highly precise component widely used in all kinds of bearings. Its unique physical and chemical properties give it excellent resistance to wear, corrosion and high temperature, making it an indispensable key component in many industrial fields.
Langsun Carbide tungsten carbide bushings are manufactured under strict process control to ensure excellent mechanical properties and reliability. Langsun Carbide can customize various kinds of tungsten carbide bushings, including drilling bushings, bearing bushings, threaded bushings and so on.
Features of Tungsten Carbide Bushings:
1. Precise tolerance control and size.
2. Adapt to all kinds of harsh environments.
3. Corrosion resistance, high temperature resistance.
4. Wear-resistant, good lubricity.
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
