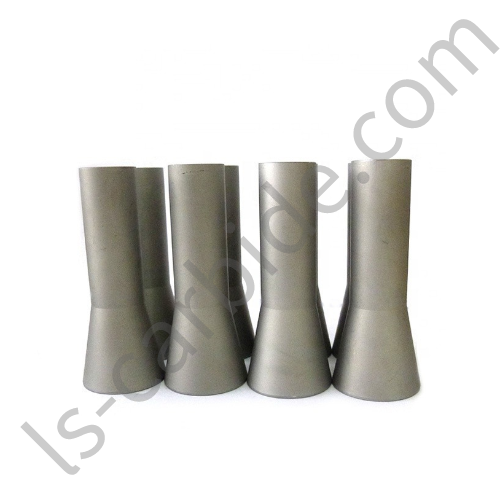

In sand blasting and shot blasting equipment, there is often continuous high-intensity work, and nozzles made of ordinary materials are prone to damage, thus increasing maintenance costs. The tungsten carbide blasting nozzle just meets these requirements, excellent wear resistance and hardness, very suitable for harsh working environments.
The high hardness of tungsten carbide nozzles also enables them to remain stable under high-pressure environments, and will not be deformed or damaged due to excessive pressure. Therefore, tungsten carbide sandblasting nozzles are ideal for sand blasting equipment.
Advantages of tungsten carbide nozzles:
- Not easily damaged and deformed
- Customized for different applications
- Wide range of materials and sizes
- Excellent chemical and physical properties
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
