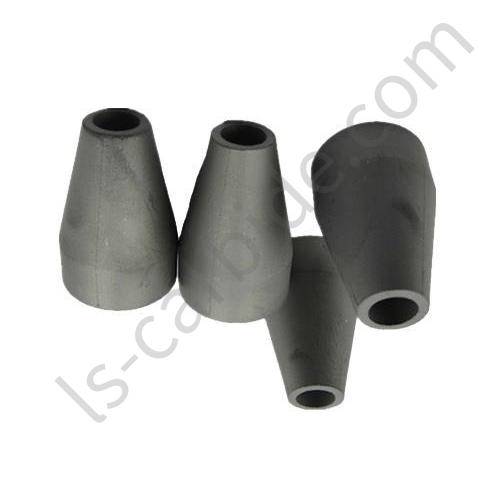

The Tungsten Carbide Nozzle is a unique and versatile component known for its exceptional durability, wear resistance, and precise fluid or gas control capabilities. Designed for various industrial applications, the Tungsten Carbide Nozzle offers outstanding performance, reliability, and longevity, making it an indispensable tool in a wide range of industries.
Features of tungsten carbide nozzles:
1. High temperature resistance, corrosion resistance, wear resistance
2. Precise flow control
3. Complete grades of various tungsten carbide materials
4. Made of 100 tungsten carbide material, precise size
5. Various types of nozzles can be customized (sandblasting nozzles, air nozzles, drill bit nozzles, etc.)
6. Affordable price and good supply capacity
Applications of tungsten carbide nozzles:
Sand blasting abrasive: Tungsten carbide sandblasting nozzles are widely used in sand blasting or shot peening and other sand blasting processes.
Waterjet Cutting: Tungsten carbide nozzles play a vital role in waterjet cutting systems.
Cooling and lubrication: Tungsten carbide nozzles are suitable for cooling and lubrication systems in various industries.
Gas and Liquid Atomization: Tungsten carbide nozzles are used in gas and liquid atomization processes.
Chemical Processing: Tungsten carbide nozzles are suitable for chemical processing equipment requiring precise fluid control and resistance to chemical attack.
| Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
