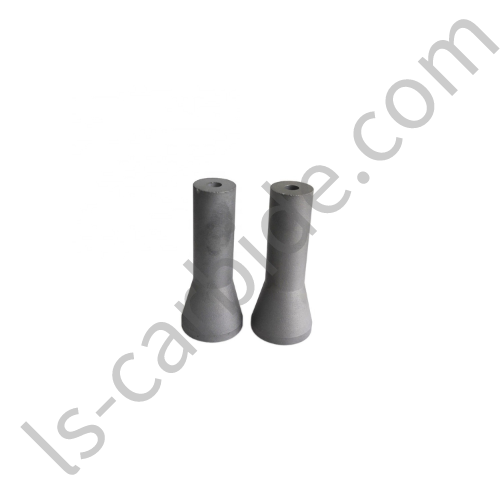

Super hard wear-resistant tungsten carbide sand blasting nozzle is a widely used tool in sand blasting field with the following features:
1. Abrasion resistance:
Tungsten carbide is a very hard material with excellent abrasion resistance. The sand blasting nozzle is made of tungsten carbide material, which can maintain a long service life in high-speed sand blasting.
2. High temperature resistance:
Tungsten carbide nozzle has a high melting point and thermal stability, which can maintain stable performance under high temperature environment and is not easy to be affected by thermal sintering.
3. Corrosion resistance:
Tungsten carbide has excellent corrosion resistance and can maintain stable performance in corrosive media such as acid and alkali.
The application of super-hard wear-resistant tungsten carbide sand blasting nozzle mainly includes the following aspects:
1. Sandblasting processing:
Super-hard wear-resistant tungsten carbide sandblasting nozzles are widely used in the surface treatment and cleaning of metals, ceramics, plastics and other materials, capable of removing impurities, oxidized layers, paints, etc., and improving surface quality.
2. Foundry industry:
Super-hard wear-resistant tungsten carbide nozzles are commonly used in the foundry industry in the mold cleaning, casting sand removal and other processes, which can improve production efficiency and product quality.
3. Aerospace:
Super-hard wear-resistant tungsten carbide sand blasting nozzles are often used in the aerospace field for the surface treatment and repair of engine parts, which can improve the wear resistance and service life of the parts.
Overall, super-hard wear-resistant tungsten carbide sandblasting nozzles have the characteristics of wear resistance, high temperature resistance, corrosion resistance, etc., which are widely used in sand blasting processing, casting industry and aerospace and other fields, and can improve work efficiency and product quality.
Cobalt Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YG6 | 6 | 14.8 | 90.0 | 1520 |
YG6X | 6 | 14.9 | 91.0 | 1450 |
YG6A | 6 | 14.9 | 92.0 | 1540 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG12 | 12 | 14.2 | 88.0 | 1810 |
YG15 | 15 | 14.0 | 87.0 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
