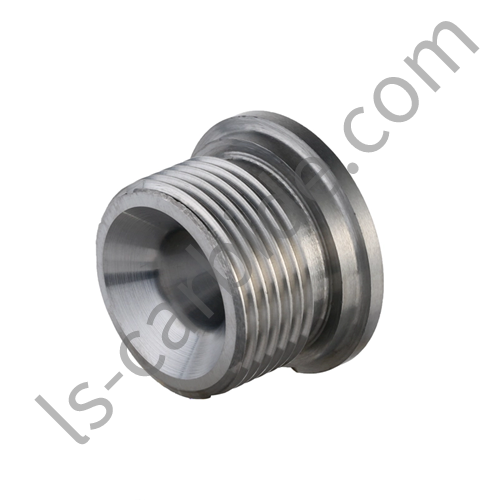

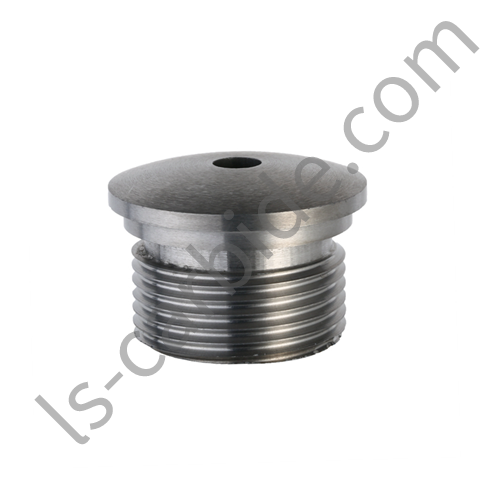

Langsun Carbide tungsten carbide nozzles are well-known for their superior durability, wear resistance and precise fluid or gas control through careful design and manufacture. Specially designed for various industrial applications, providing cutting-edge solutions for various industries.
Features of tungsten carbide nozzles:
1. 100% tungsten carbide pure raw material to produce tungsten carbide products
2. HIP high temperature sintering, better product quality
3. Consistent and precise flow control
4. Resistant to corrosion, erosion and thermal shock
5. Excellent hardness and wear resistance
6. Strong production capacity and fast delivery time
7. It can be customized according to the drawings, and the price advantage is great
Applications of tungsten carbide nozzles:
1. Abrasive Blasting Industry:
Ideal for applications such as surface cleaning, paint stripping, and corrosion removal in industries such as shipbuilding, automotive, and restoration.
2. Coating and Finishing Industry:
Achieve uniform and efficient coatings in diverse applications ranging from automotive to aerospace, thanks to the exceptional performance and consistency of our nozzle.
Perfect for spray coating processes such as paint spraying, powder coating, and surface finishing in various industries.
3. Precision Machining Industry:
Experience enhanced precision and reduced material waste with the controlled and accurate material cutting capabilities of our tungsten carbide nozzle.
Well-suited for applications like CNC machining, milling, and drilling that demand high-quality, precise material removal.
4. Mining and Construction Industry:
Excel in demanding mining and construction tasks with our tungsten carbide nozzle's exceptional wear resistance and robust performance.
Ideal for tasks such as rock drilling, tunneling, and concrete cutting, where durability, longevity, and reliability are crucial.
| Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
