The accuracy and efficiency of nozzle spraying depends on the size of the nozzle hole, if the nozzle hole size is not suitable or worn out during use, the accuracy and efficiency of spraying will be seriously affected. Therefore, nozzles made of common materials are not the best choice.
Langsun Carbide's best nozzles are the best choice. Our tungsten carbide nozzles are extremely hard and wear-resistant, which means that the size and shape of the nozzle hole will not change over long periods of time. Customers do not have to worry about nozzle hole wear.

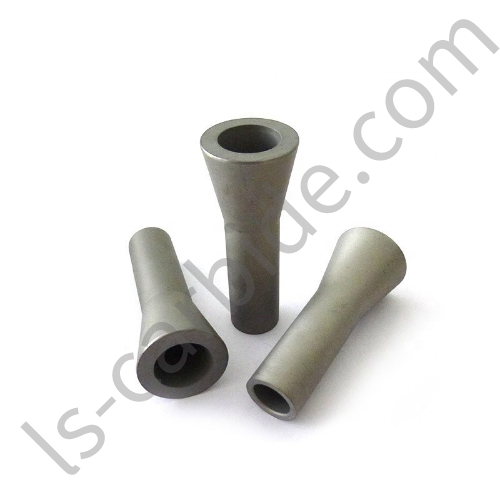

Advantages of tungsten carbide nozzles:
- Customizable, various sizes and special requirements can be met
- Suitable for a wide range of operating environments
- Excellent hardness and wear resistance
- No dimensional change at high temperatures and pressures
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
