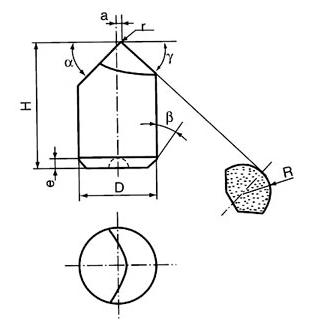

| Type | Dimension(mm) | Note | ||||||||
| D | H | R | α | β | γ | r | a | e | ||
| LSCM27-81001 | 11.5 | 25.0 | 6.0 | 58 | 45 | 50° | / | / | 1.0 | G81201 |
| LSCM2721 | 12.5 | 9.0 | 48 | 32° | / | 2.3 | G82681 | |||
| LSCM2721A | 10.0 | 47 | 23 | 45° | / | 1.3 | 2.0 | G5466 | ||
| LSCM2713 | 13.0 | 24.0 | 53 | 45 | 50° | 1.0 | 1.0 | 1.0 | G85033 | |
| LSCM2715 | 15.0 | 22.0 | 11.0 | 45 | 30 | 45° | / | / | 2.6 | G6597 |
| LSCM2715A | 22.6 | 10.0 | 41 30 | 39 | 51° | 1.0 | 1.1 | 2.4 | G5465 | |
| LSCM2717 | 17.8 | 20.0 | 14.4 | 37 30 | 45 | 67° 30° | / | / | 1.5 | G8154 |
