Made from tungsten carbide material, these inserts possess extremely high hardness and wear resistance, allowing them to operate stably under high-speed and heavy-load conditions, achieving efficient cutting of workpieces.
The thermal stability of tungsten carbide inserts ensures that the tools are less prone to deformation or wear during the cutting process, resulting in high-precision machining outcomes. They are widely used in metalworking, plastic molding, and composite material cutting.

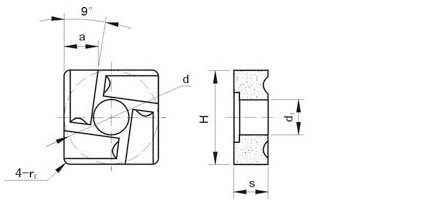

| Type | Dimension(mm) | |||||
| d | s | r | a≈ | d1 | H | |
| LSC41005F | 10 | 3.5 | 0.5 | 2.4 | 4.2 | 10 |
| LSC41005FL | ||||||
| LSC41305F | 13 | 4.5 | 0.5 | 3.4 | 5.2 | 13 |
| LSC41305FL | ||||||
| LSC41605F | 16 | 5.5 | 0.5 | 4.4 | 6.2 | 16 |
| LSC41605FL | ||||||
| LSC41905F | 19 | 7 | 0.5 | 5.4 | 7.2 | 19 |
| LSC41905FL | ||||||
