| Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |

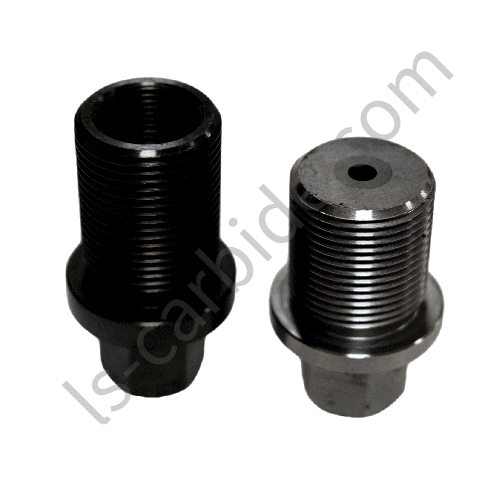

Features of Tungsten Carbide Nozzles:
1. With the characteristics of high hardness and high strength
2. Good chemical stability, excellent corrosion resistance and heat resistance
3. 100% raw material guarantee, stable product performance
4. Complete grades of materials, suitable for various working environments
Applications:
Tungsten carbide nozzles are widely used in oil and natural gas industry; coal mining and drilling coal water slurry industry; agricultural sprinkler irrigation and urban greening; various cleaning equipment in machinery industry, etc.
Material properties:
The non-bonding phase nano cemented carbide product is established for working conditions that call for high wear resistance and rust resistance. By using the production technology of nano cemented carbide, the bending stamina of the product can be improved.
Advantages of Langsun Carbide:
1. Possess scientific and advanced process equipment and unique processing technology
2. The product has high cost performance and strong supply capacity
3. Can help customers cope with harsh working conditions in the industry
4. Products of various complexity can be produced
Ningbo Langsun Tungsten Carbide Co., Ltd. is a professional supplier and also provider of tungsten carbide components. We are well-known for producing tungsten carbide components for oil and also gas. The oil as well as gas extraction firms you recognize may use our items. The tungsten carbide nozzles we produce have high hardness as well as sturdiness, superb rust resistance as well as put on resistance, and also can adjust to various extreme working environments. Therefore, the majority of our clients are from oil as well as gas expedition company in Europe as well as The United States And over the world. Premium service as well as excellent product high quality likewise make them happy to cooperate with us for a very long time. So, you can have complete confidence in our product top quality as well as service, if you are interested in us, please do not hesitate to send us an email.
