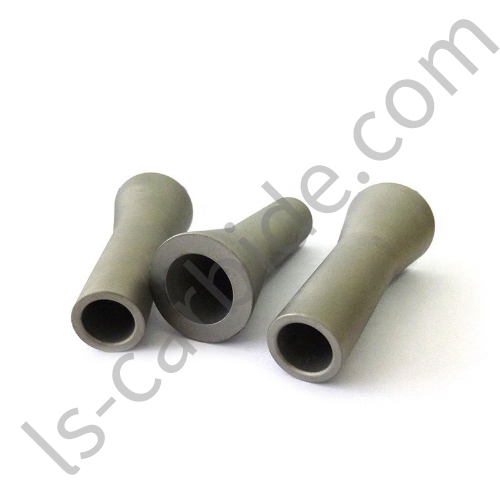

Tungsten carbide sandblasting nozzles are often used in sandblasting equipment. The main function of tungsten carbide sandblasting nozzle is to blast sand or other abrasive materials onto the target surface at high speed, so as to achieve the purpose of cleaning or treatment. The main function of a tungsten carbide blasting nozzle is to blast sand or other abrasive materials onto the target surface at a high velocity to clean or treat it.
Tungsten carbide blasting nozzles have high abrasion and corrosion resistance, and are able to maintain stable performance in high-pressure and high-speed working environments, thus improving the working efficiency and service life of sand blasting equipment.
Advantages of tungsten carbide nozzles:
1. Better spraying effect
2. Strong corrosion resistance, good thermal stability
3. Low maintenance cost, environmental protection
4. Stable performance, not easy to damage
Cobalt Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YG6 | 6 | 14.8 | 90.0 | 1520 |
YG6X | 6 | 14.9 | 91.0 | 1450 |
YG6A | 6 | 14.9 | 92.0 | 1540 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG12 | 12 | 14.2 | 88.0 | 1810 |
YG15 | 15 | 14.0 | 87.0 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
