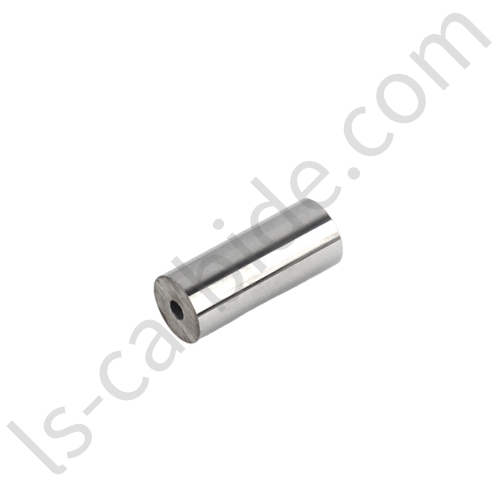

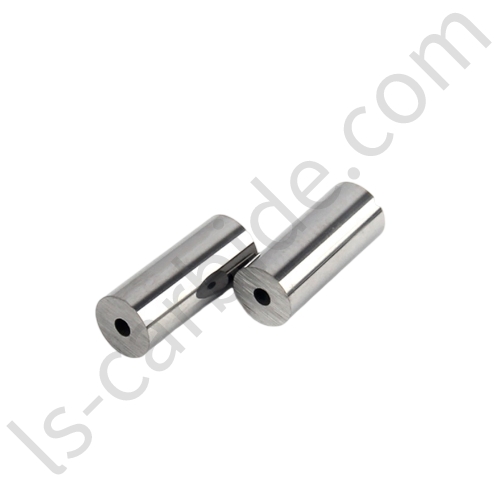

The Tungsten Carbide Nozzle finds extensive use in various industrial processes that require precise and controlled spraying, cutting, or shaping. Its exceptional hardness and wear resistance allow it to withstand harsh environments and abrasive materials, ensuring optimal performance even in challenging conditions. From surface treatment to mining operations, this nozzle excels in delivering precise and consistent results.
Applications of tungsten carbide nozzles:
· Surface treatment: Tungsten carbide nozzles are widely used in surface treatment processes such as shot peening, sandblasting and vapor deposition.
· Cutting and Machining: Tungsten carbide nozzles offer exceptional hardness and wear resistance, making them ideal for cutting and machining applications. It is widely used in water jet cutting, sandblasting and other precision cutting jobs.
· Cooling and Lubrication: In industrial processes that require cooling or lubrication, tungsten carbide nozzles precisely and efficiently dispense coolant or lubricant.
· Chemical and petrochemical industries: Tungsten carbide nozzles have excellent resistance to aggressive chemicals, acids and alkalis, making them suitable for processes involving spraying or distributing corrosive substances.
Features of tungsten carbide nozzles:
1. Precision spraying or cutting
2. Excellent thermal stability, resist thermal shock and maintain dimensional stability
3. Suitable for applications involving corrosive chemicals, acids and bases.
4. Precision grinding, high precision
5. Production of high-quality tungsten carbide raw materials
6. HIP process sintering, stable performance and excellent quality
7. Strong production capacity and fast delivery
8. Fully customized nozzles of various sizes, materials and specifications
Langsun Carbide offers a range of customizable options for tungsten carbide nozzles, including different nozzle types (sandblasting nozzles, air nozzles, PDC drill nozzles, etc.), sizes, spray patterns and connection accessories. This allows us to tailor nozzles to specific application requirements, optimizing performance to meet different industrial needs
| Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
