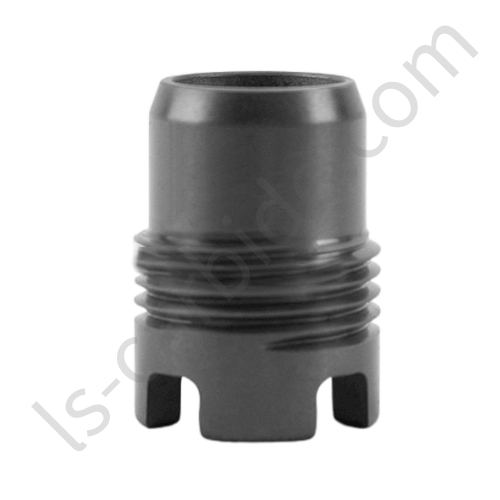

Our carbide nozzles have excellent wear resistance and corrosion resistance, and can be used in any extreme environment, such as oil extraction, etc. Therefore, carbide nozzles have become the most widely used nozzles in various industries. Although the production process of cemented carbide nozzles is relatively complicated. But its service life and performance are better than nozzles made of other materials.
Besides that, our tungsten carbide nozzles can withstand deformation, high temperature and pressure.
If you want to know more about our tungsten carbide nozzle, please feel free to contact us, and we will have dedicated personnel to reply you in the shortest possible time.
Attributes of tungsten carbide nozzles:
1. The firmness can reach over HRC50, incredibly high hardness
2. It can function perfectly at a heat of concerning 1200 ° C, has exceptionally high temperature resistance
3. It can be used in very extreme working environment ，has outstanding corrosion resistance
4. Lengthy service life, lowering the frequency of replacement
Our benefit:
1. Utilizing 100% high-quality raw material formula
2. The manufacturing cycle is short, fast delivery
3. Advanced devices and experience group
4. Customizable products, any kind of complex products can be made
5. Reasonable price
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
