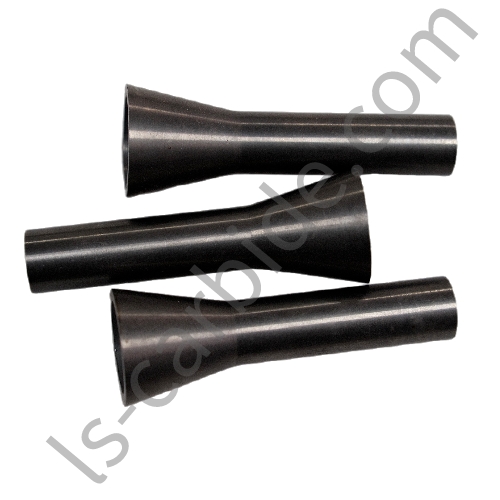

Tungsten carbide nozzlesare high performance engineered components made of tungsten carbide powder that provide precise and efficient fluid or particle flow control in industrial applications. Tungsten carbide nozzles provide outstanding durability and performance in harsh working environments. Incorporating tungsten carbide nozzles into industrial applications can extend service life, reduce downtime, increase productivity, and provide reliable performance in a variety of industrial environments.
Sand blasting, cooling, spraying, gas and flow control, etc.
Features of tungsten carbide nozzles:
1. Excellent hardness
2. Highly wear-resistant and corrosion-resistant
3. Precise flow control
4. Excellent thermal stability
choose us:
1.100% pure original fine tungsten carbide
2. Excellent sintering process
3. High cost performance
4. Precise size, high precision
5. Customized in various sizes, shapes and materials
Ningbo Langsun Tungsten Carbide Co., Ltd. selects pure original fine tungsten carbide raw materials to make tungsten carbide nozzles. Equipped with advanced process facilities and HIP sintering technology, the final product has passed strict quality inspection, and the quality is stable and excellent. Langsun Carbide can customize nozzles of various sizes and types, including air nozzle, gas nozzle, sandblasting nozzle, etc. Can also be customized according to drawings.
| Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
