Material composition:
Tungsten carbide material specification
Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
Value:

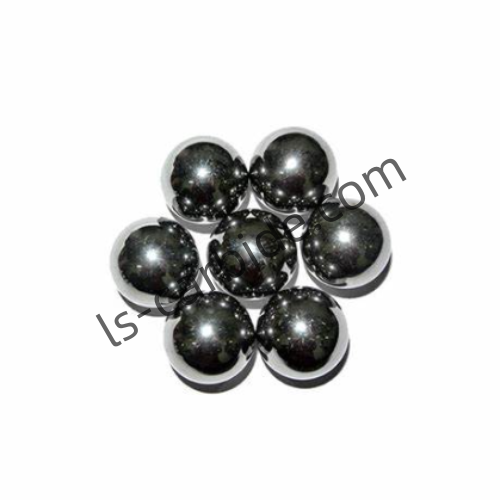

Cemented Carbide Balls are widely used in grinding machines, so the surface treatment of tungsten carbide balls is very important. Only enough smoothness and wear resistance can increase its service life. In addition, Tungsten Carbide Balls are also widely used to control the opening and closing of valves. The opening and closing of valves are realized by the ball around the axis of the valve rod. Therefore, the requirements for the corrosion resistance of Tungsten Carbide Balls are also high. It can be seen that without pure raw materials and mature processing, it is difficult to meet the above requirements. Although the properties of tungsten carbide materials are excellent in all aspects, the wear resistance of the products made of different ingredients is different. If the customer has any doubts about the selection of materials, the customer can tell us the specific use direction of the product, and we can recommend the most appropriate composition proportion.
Highlights:
1. Excellent wear resistance and strong hardness
2. It can be customized according to customers' needs
3. Stable chemical properties
4. Timely delivery
Advantages:
Parts and components used for grinding machines need good wear resistance and hardness. Tungsten carbide materials just meet these requirements. However, tungsten carbide productsare often not in the range of choice of manufacturers because of the relatively high price. We have considered the price, so if we cooperate with us, we will reduce the waste of raw materials and try to cooperate with customers at the lowest price.
Application industry:
Crushing industry, navigation industry, hardness inspection machine, etc.
Service:
If the customer is unsure which grade of material is the best, we can provide the customer with the most suitable product solution. In addition, if you have any questions after receiving the goods, please feel free to contact us.
