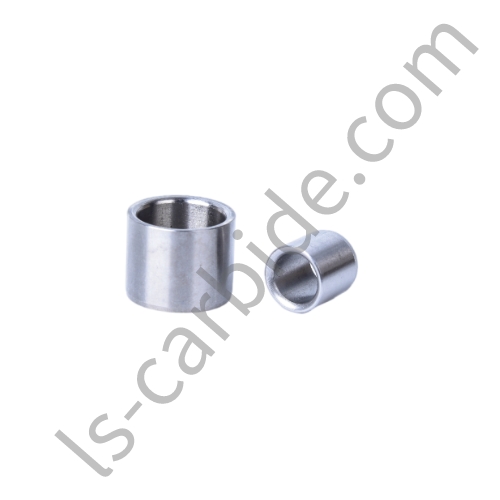

Tungsten carbide bushings are mechanical parts made of tungsten carbide, in the form of cylinders or sleeves. Tungsten carbide bushings can be used in harsh and demanding working environments, providing a reliable and long-lasting solution for applications requiring high wear resistance, hardness and strength to provide support, reduce friction and withstand heavy loads in mechanical systems. Therefore, it is widely used in various industrial applications.
Applications of tungsten carbide bushings:
Oil and gas, machinery manufacturing, cement production, metallurgy and other industries
Features of tungsten carbide bushings:
1. Extremely high hardness level
2. High wear resistance
3. Good strength and toughness
4. Excellent thermal stability
5. Good tolerance (acid, alkali, etc.)
6. Low coefficient of friction
Choose Langsun Carbide:
1.100% tungsten carbide powder to make tungsten carbide bushing
2. High-tech and precise process equipment
3. Complete materials and specifications
4. Various complex shapes can be customized
5. Sample service (not free)
Ningbo Langsun Tungsten Carbide Co., Ltd. has advanced tungsten carbide parts production equipment and extremely mature production lines. Our production cycle is fast and delivery can be completed in a short time. We can provide tungsten carbide bushings in various sizes, and we can also make various types of tungsten carbide bushings, including tungsten carbide threaded bushings, tungsten carbide shaft bushings and tungsten carbide drill bushings, etc.
| Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
