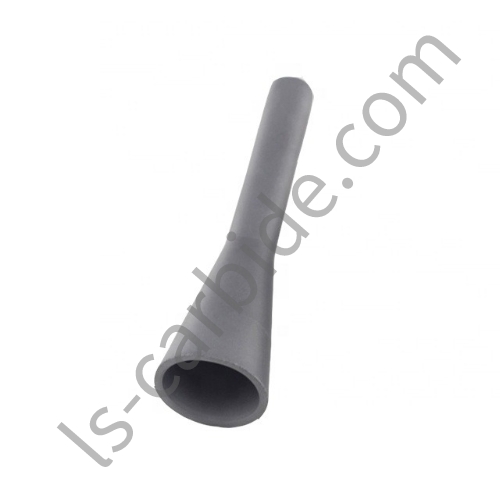

Tungsten carbide nozzles play a vital role in industrial processes that require durability, precision, and resistance to wear and high temperatures. Their applications span across various industries, contributing to increased efficiency and improved performance in critical operations.
Features of Tungsten Carbide Nozzle：
1. Hardness: Tungsten carbide is one of the hardest materials known
2. Wear Resistance: Tungsten carbide nozzles can withstand the erosive effects of abrasive materials or high-velocity particles
3. Temperature Resistance: These nozzles can operate at high temperatures without significant degradation
4. Chemical Resistance: Tungsten carbide is resistant to many chemicals and corrosive substances
5. Precision: Tungsten carbide nozzles can provide precise spray patterns or jet streams
Application of Tungsten Carbide Nozzle：
Abrasive Blasting: Tungsten carbide sandblasting nozzles are commonly used in abrasive blasting processes, such as sandblasting or shot blasting.
Waterjet Cutting: Tungsten carbide nozzles are crucial in waterjet cutting systems, where they focus and direct high-pressure water mixed with abrasives to accurately cut through materials like metal, stone, and glass.
Coating and Painting: Industries that require consistent and precise coating or painting, such as automotive and aerospace, use tungsten carbide nozzles to achieve uniform application even with abrasive or viscous materials.
Oil and Gas Drilling: Tungsten carbide nozzles are employed in drilling tools and equipment in the oil and gas industry due to their ability to withstand harsh conditions and effectively direct drilling fluids.
Mining and Construction: These nozzles find use in mining and construction equipment, such as hydraulic systems, where they can endure demanding conditions and maintain performance.
Our advantages: Equipped with scientific and advanced process equipment, capable manufacturing team. Different types of tungsten carbide nozzles can be manufactured, such as spray nozzles, sandblasting nozzles, thread nozzles and other non-standard industrial nozzles. We can also customize tungsten carbide nozzles according to customers' drawings or application requirements. We have been recognized by customers for our fast delivery time and competitive price. It is our mission to provide customers with high-quality tungsten carbide products.
Material composition:
| Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
