C2 Brazed Tips feature exceptional wear resistance and high strength, with brazing technology securely fixed to the tool substrate, ensuring that they do not fall off or deform under high speed and high temperature, providing outstanding cutting performance in extreme conditions.
Machining: Widely used in metalworking, woodworking, and other industries, suitable for various cutting and drilling operations.
Oil and Gas Industry: Provides efficient cutting solutions during drilling operations, ensuring smooth workflow.
Construction Industry: Used for cutting concrete and other construction materials, ensuring efficiency and quality in construction.
Visit our official website [ls-carbide.com] for more information on technical specifications, application cases, and customized services for C2 tungsten carbide tips, or contact our sales team directly for professional advice and quotes.

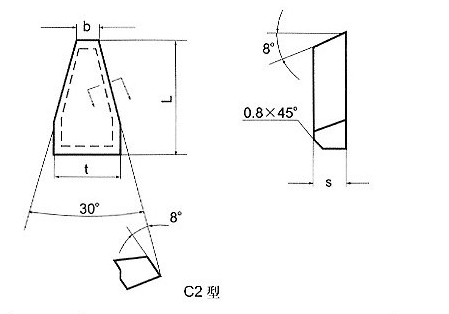

| Type | Dimension(mm) | ||||
| l | t | s | b | e | |
| C215 | 15 | 7 | 4 | 1.8 | 0.8 |
| C218 | 18 | 10 | 5 | 3.1 | 0.8 |
| C223 | 23 | 16 | 5 | 4.9 | 0.8 |
| C228 | 28 | 18 | 6 | 7.7 | 0.8 |
| C236 | 36 | 28 | 7 | 13.1 | 0.8 |
