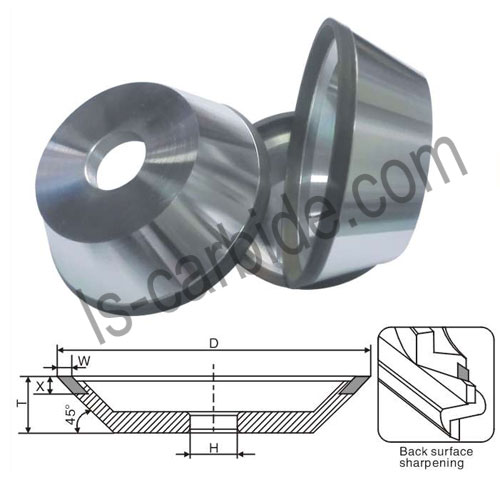

12 V9-45° Grinding Dish Wheel JR003 BW2
Add to Basket
Inquire Now
Application:
Used for sharpening and finishing of cutting tool back surfaces.
Item No
Diameter(D)
Height(T)
Thickness(X)
Width(W)
Hole(H)
JR003-1
50
25
5
2
10
JR003-2
75/80
30
5
3
10,20
JR003-3
100
40
7
3
20
JR003-4
125
45
7
3
32
JR003-5
150
45
7
3
32
