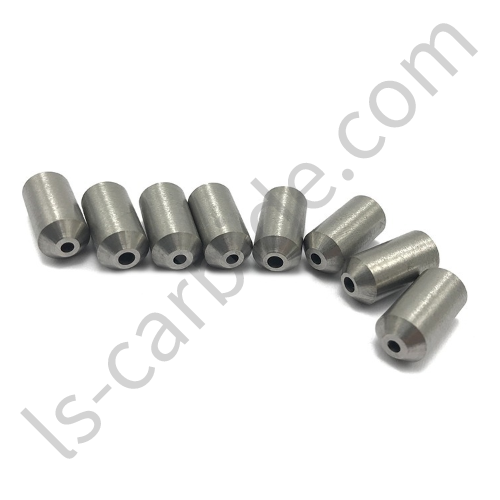

High-pressure wear-resistant nozzles can be used in a variety of high-pressure jetting applications, such as high-pressure cleaning, sandblasting, and paint spraying. The excellent abrasion resistance enables them to maintain a stable nozzle shape for a long period of time during high-speed spraying.
The high quality tungsten carbide material gives the nozzle excellent wear resistance, allowing it to be used for long periods of time without wear or damage. This makes it ideal for use in harsh environments such as the chemical, metallurgical and mining industries.
Characteristics of tungsten carbide nozzle:
1. Accurate spraying capability.
2. Can withstand high speed and high pressure spraying.
3. Excellent abrasion resistance.
4. Resistant to various chemicals.
5. Stable performance, maintaining the shape of the nozzle for a long time.
Our high pressure wear-resistant tungsten carbide nozzles will provide you with excellent performance and reliable durability. It will become an indispensable and important tool in your work to help you accomplish a variety of high-pressure spraying tasks.
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
